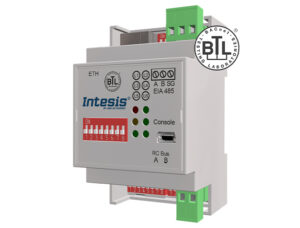

Daikin AC Domestic units to BACnet IP/MSTP Interface – 1 unit

Part No: INBACDAI001I000

£288.00 excl. VAT

The Daikin-BACnet gateway allows fully bi-directional communication between Daikin Domestic Air Conditioner units and BACnet IP or MSTP networks.

FEATURES

  • BTL mark ensures full interoperability with BACnet devices.
  • Support BACnet IP and BACnet MS/TP.
  • Configuration from onboard DIP-switches.
  • IP settings available in a web interface.
  • Quick and easy installation (plug and set the DP-SW).
  • External power not required.
  • Simultaneous control of the AC unit by the IR remote controller and by BACnet IP or MS/TP.
  • Reduced dimensions 93 x 53 x 58 mm.
  • Mountable on DIN rail, wall, or even inside the indoor unit in some models of AC.
  • Abstraction of Air Conditioning unit properties and functionalities as fixed BACnet Objects.
  • Occupancy function allows energy savings.
  • Costs related to HVAC systems in a building are one of the highest and this type of functions allow to reduce them.
  • Total control and monitoring of the AC unit from BACnet, including AC unit’s internal variables, running hours counter (for filter maintenance control) and error indication.

SKU: INBACDAI001I000 Categories: , Tag:

Additional information

Weight 200 g
Dimensions 140 × 110 × 85 mm
