Daikin VRV and Sky systems to KNX Interface – 1 unit

Part No: INKNXDAI001R000

£178.00 excl. VAT

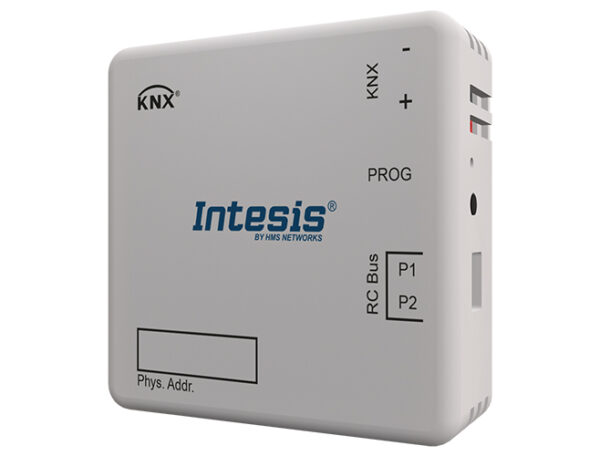

The Daikin -KNX gateway allows fully bi-directional communication between Daikin VRV and Sky systems and KNX installations.

FEATURES

  • KNX certified.
  • Configured by ETS standard configuration tool.
  • Reduced dimensions allowing a quick installation inside the Air Conditioner unit.
  • Offered all the required DPT objects to be compatible with all KNX thermostats in the market.
  • Energy efficiency functions, such as ÒtimeoutÓ, Òopen windowÓ or ÒOccupancyÓ. Costs related to HVAC systems in a building are one of the highest and these functions allow to reduce them.
  • Smooth integration of KNX thermostats allowing the control of the AC unit by the own temperature sensor of the thermostat.
  • Simultaneous control of the AC unit by the IR remote controller and by KNX.
  • Total control and monitoring of the AC unit from KNX, including AC unit’s internal variables, running hours counter (for filter maintenance control) and error indication.
  • Up to 5 scenes can be saved and executed from KNX.

SKU: INKNXDAI001R000 Categories: , Tag:

Additional information

Weight 100 g
Dimensions 120 × 93 × 68 mm
